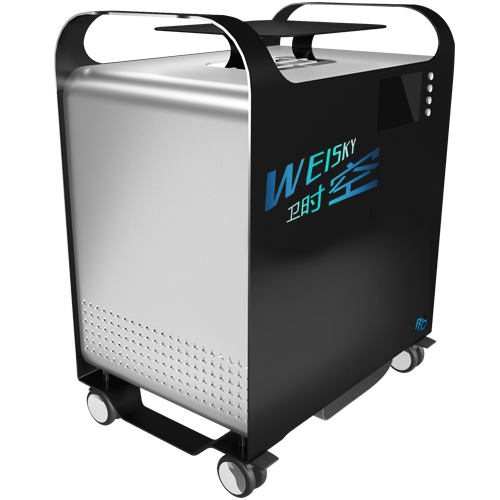

WESH T01

Air purification and disinfection for human-machine coexistence in large space

WESH T01 Multiple Light Plasma Sterilizer is a LOG 6 air sterilization equipment with coexistence of man and machine. It is the best choice for places with high cleanliness requirements without laminar flow structure and rapid degradation of hydrogen peroxide residues, and can be used as a mobile laminar flow station.
As the disinfection unit of WEISKY intelligent networked disinfection system, the degradation speed of hydrogen peroxide can be increased by 6 times, which greatly reduces the total time of hydrogen peroxide disinfection process and solves the major contradiction between space flow rate and high standard disinfection. The degradation process is controlled by the system without human control. After the degradation, it can be used as air disinfection equipment to continue running, and maintain the sterile space created by hydrogen peroxide in real time under the working state of personnel.
Significant advantage
  • LOG 6 disinfection

    Completely disinfected, no chance for the pathogenic bacteria to reproduce
  • Real-time disinfection

    When polluted air is sucked into the machine, microbes in the air break their DNA within 0.1 seconds
  • The man-machine coexistence

    Quietly protect your breathing safety
  • Large effective processing space

    For your breathing safety escort
  • Indiscriminate disinfection

    Ensure safety while keeping you away from formaldehyde, PM 2.5, odor and other toxic volatile substances and harmful aerosols
  • Rapid degradation

    30 minutes after hydrogen peroxide disinfection, you can return to the sterile space
  • Intelligent degradation

    After disinfection, the equipment will automatically enter the degradation operation state according to the space size and disinfection level
  • Rapid pathogen inhalation

    The equipment adopts the EBM high static pressure fan imported from Germany, which generates a high negative pressure point in the space, and the exhaled germs are instantly inhaled.
Scientific research technology

Achieved effect1 + 1 >2

By adjusting the specific concentration of plasma, UVA wavelength and photocatalyst additive, and the time of action of the two treatments, the effect of 1 + 1 >2 can be achieved: that is, the combination of plasma and ULTRAVIOLET radiation is much more than twice as effective as either technique alone.
  • Mobile portable

    Mobile portable

    light weight, with his hands and castor
  • Hydrogen peroxide flow adjustable

    Hydrogen peroxide flow adjustable

    100-4000 ml/h
  • Internet control and monitoring

    Internet control and monitoring

    mobile phone, PC, web remote control software
  • Long running time

    Long running time

    brushless fan to ensure a single run 20 hours
  • No solution box size limit for liquid

    No solution box size limit for liquid

    external system, box matching solution based on the requirements
  • Without waste disinfectant

    Without waste disinfectant

    through sealed one-way tank, based on the system requirements for real-time fluid, residual solution in the tank can be long-term preservation

WESH T01Multiple plasma air purifier

The technology uses dielectric barrier discharge to act on oxygen and water vapor in the air, so that a high concentration and unstable plasma field of positive and negative oxygen ions and hydroxyl radicals is formed on the surface of the generator. A large number of basic chemical bonds are destroyed after the microorganisms, VOCs, TVOCs and odors in the air pass through the ion field. Under the action of the high static pressure of EBM large air volume fan, the air continues to run downward and passes through the medium and HEPA high efficiency filters. The particles above 0.3 microns are adsorbed, the large particle aerosols suspended in the air are completely filtered, and after filtering, they enter the high-density activated carbon layer. Most of the hydrophilic-based substances and destroyed VOCs and TVOCs are adsorbed. The remaining destroyed odors, microorganisms and other substances will eliminate and die instantly after entering the special wavelength ultraviolet and photocatalyst processing units.
Applications
Technical parameter
power supply220-230V 50/60HZ
power600W
suttle23KG
systemWEISKY DISINFECTION APP
Control systemMobile, tablet, PC, web
Air volume1000m³/H
size450*310*630mm
Working temperature8-50℃
Single run time24H
